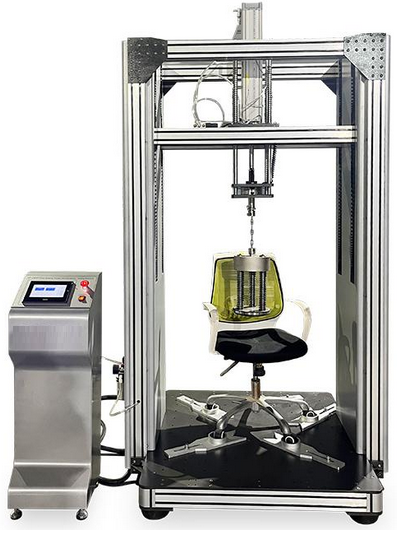

Chair Seating Impact and Durability Testing Machine
Lượt xem : 535
| Function: |
This Chair Seating Impact and Durability Testing Machine applies to all types of chairs, with 2 functions of chair seating impact and seating durability test.
The purpose of this test is to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat and evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.
|
| Standards: |
BIFMAX5.1-2017 Section 7, 10.3 ( A+B Standards)
|
| Specifications: | Model A B C Impactor diameter 200 mm 406 mm A + B Impactors Impactor weight 25 kg Max. 350 lbs (accumulated) — Cylinder stroke 0–300 mm Beam stroke 900–1350 mm Test speed 10–30 r/min Test times 0–999,999 times, settable Control PLC touch screen control |
