TEXTEST Switzerland officially launches the all-new L 5110-IV LaboData PC-based universal data analysis software. The new version will fully replace the existing L 5110-III LaboData and supports more new and older-generation TEXTEST testing instruments.
Since the old L 5110-III LaboData can no longer meet modern information security requirements, TEXTEST will discontinue support for that version. Customers still using the old software are advised to evaluate upgrading to L 5110-IV LaboData as soon as possible.

Centralized Management of Test Data, Improving Laboratory Efficiency

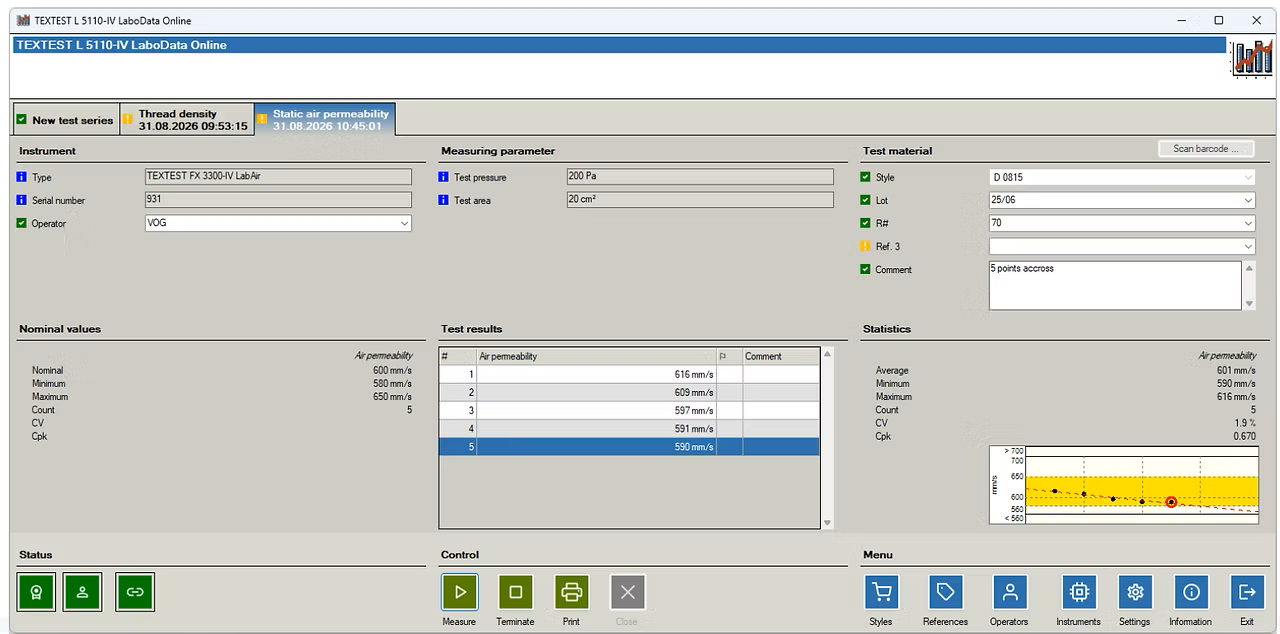

L 5110-IV LaboData can be used to acquire, analyze, store, and record measurement data from different TEXTEST instruments, and to perform long-term quality trend analysis.
Users do not need to understand the instrument's data format or transmission method; they can manage multiple instruments and multiple sets of test data through a unified operating interface, making daily testing, quality monitoring, and report generation more convenient and consistent.

Key Features

• Simple and intuitive operating interface

• Selectable product style settings and preset test parameters to ensure consistent test conditions and report formats

• Long-term analysis module for continuous tracking of product quality and change trends

• Can simultaneously process multiple sets of test data from different instruments

• Supports English, German, French, Italian, Spanish, and Portuguese interfaces

• Fully compatible with L 5300-GDC universal data conversion software

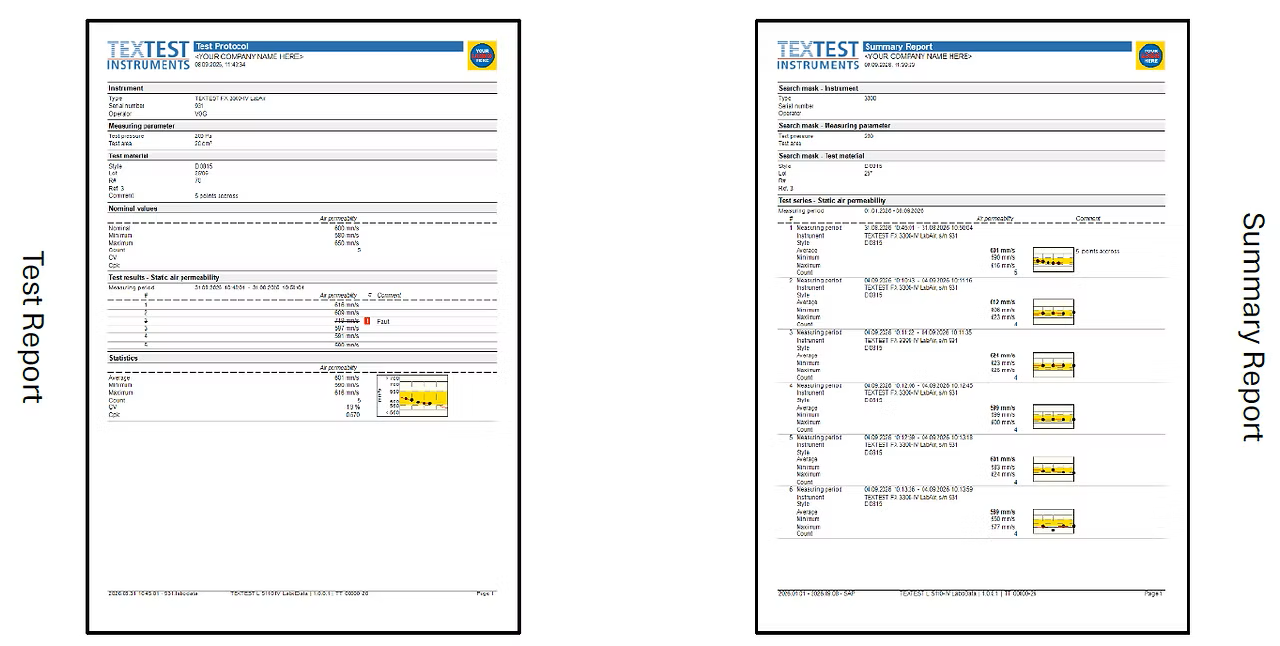

• Can generate complete test reports and provides nominal range monitoring functionality

Supported TEXTEST Instruments

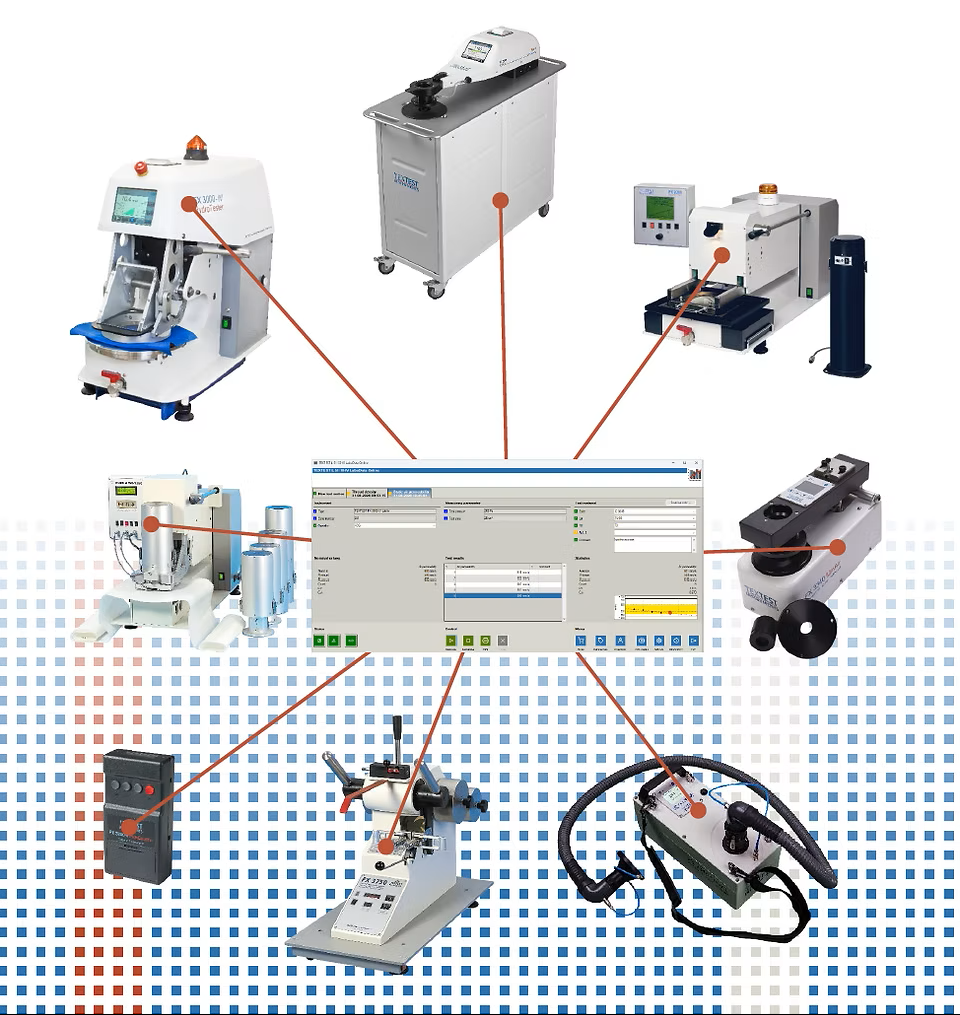

L 5110-IV LaboData can be used with the following TEXTEST testing instruments:

• FX 3000-II Hydrostatic Head Tester

• FX 3000-III Hydrostatic Head Tester

• FX 3000-IV HydroTester

• FX 3250／FX 3250-II PickCounter

• FX 3300-II／III／IV LabAir Air Permeability Tester

• FX 3320 MobilAir Portable Air Permeability Tester

• FX 3340／FX 3340-L MinAir Air Permeability Tester

• FX 3345／FX 3345-L FlexAir Air Permeability Tester

• FX 3350 Airbag-Tester

• FX 3700 Elmendorf Tear Strength Tester

• FX 3750 Elmendorf Tear Strength Tester
  Some older instruments have specific requirements for serial number, firmware version, or RS232 data transmission cable; actual compatibility must be confirmed on an individual instrument basis.

Further Data Processing with L 5300-GDC
Data output from L 5110-IV LaboData can be further processed through the L 5300-GDC Generic Data Converter universal data conversion software.
When purchasing L 5110-IV LaboData, the L 5300-GDC software is included free of charge.
For information on software features, instrument compatibility, upgrade options, or pricing, please contact us
