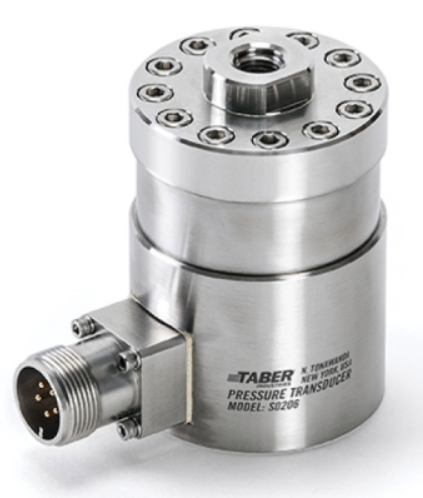

TEST STAND PRESSURE TRANSDUCER _ TABER S0206 Series
Lượt xem : 18
| Descriptions: |
Taber Model S0206 pressure transducer series is available in both amplified and non-amplified versions and is built with a rugged, reliable, stainless steel construction. Developed for Rocket and Jet engine test stands the S0206 series can measure static and dynamic pressure where high frequency response is required. The removable pressure cap utilizes metal to metal seals eliminating O-rings, allows access to clean the pressure cavity and replace the stainless steel diaphragms. The S0206 series is highly stable to mechanical and thermal shock environments. The sensing element was designed to be isolated from the diaphragm which improves thermal stability. Taber Model S0206 is available for broad pressure ranges. Specifications: - Output Signal: 3 mV/V ; 0-5 VDC ; 4-20 mA - Full Scale Output (FSO): 3 mV/V: 30 mV with 10 VDC input ; 0-5 VDC: 5 VDC ; 4-20 mA: 16 mA - Static Error Band: ± 0.30% FSO using Best Fit Straight Line (BFSL) and Root Sum Squared (RSS) Method - Total Error Band: ± 1.5% FSO over entire Compensated Temperature Range (CTR) - Maximum Expected Operating Pressure (MEOP): 0-34.5 BAR through 0-414 BAR ; 0-500 PSI through 0-6,000 PSI - Proof Pressure: 1.5 times MEOP, Minimum - Minimum Burst Pressure: 2.5 times MEOP - Compensated Temperature Range (CTR) Temperature range in which the transducer will operate within the total error band: -34° C to +77° C (-30° F to +170° F) - Operating Temperature Temperature range in which the transducer will operate without degradation of performance once it returns to the CTR: -54° C to +121° C (-65° F to +250° F) - Strain Gage Type: Resistive Bonded Foil - Insulation Resistance: 1 Gohm at 50 VDC - Electrical Connection: MS3102-14S-6P per MIL-DTL-5015 - Mating Connector (not included): MS3106-14S-6S or equivalent - Excitation Voltage: 3 mV/V: 5-15 VDC (10 VDC nominal) regulated power supply required ; 0-5 VDC: 20-36 VDC (28 VDC nominal) ; 4-20 mA: 8-36 VDC (24 VDC nominal) - Wetted Parts Materials: 316L, 347, Carp 20 - Weight: Typical 1.6 Kg - Case Material: 316L - Pressure Port: AS5202-04 (MS33649-4) ; .4375-20 UNJF-3B female thread ... |
| Accessories: |
N/A
|
| Optional Accessories: |
Internal shunt value at various percentages FSO at +21° C (+70° F).
|
| Standard Features: |
Millivolt (mV/V), Voltage (VDC) or Current (mA) output signal mA output option does not require regulated power supply Output short circuit protected Replaceable stainless steel diaphragms Mechanical overload protection Secondary containment Thermal Isolation 316 SS Wetted Materials (hydrogen compatible) Wide Pressure Range Removable pressure cap to facilitate inspection and cleaning of pressure cavity PSI, Bar or MPa in gauge pressure
|
