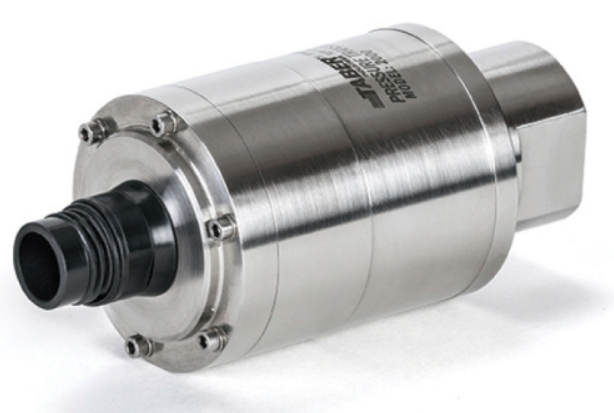

SUBMERSIBLE PRESSURE TRANSDUCER _ 2000 / 2002 Series
Lượt xem : 19
| Descriptions: |
Taber’s 2000 / 2002 Submersible Series pressure transducer provides rugged and reliable performance for harsh subsea vehicles, oil and mining applications. A fully welded 17-4 PH stainless steel pressure media cavity allows for measurements up to 10,000 PSI (22,400 feet of sea water). The bonded foil strain gage diaphragm design provides stable signal fidelity with low hysteresis and non-repeatability errors. Specifications: - Output Signal: 2000 Series: 0-5 VDC ; 2002 Series: 4-20 mA - Full Scale Output (FSO): 2000 Series: 5 VDC ; 2002 Series: 16 mA - Static Error Band: ±0.2% FSO using Best Fit Straight Line (BFSL) and Root Sum Squared (RSS) Method - Total Error Band: ±1.0% FSO over entire Compensated Temperature Range (CTR) - Maximum Expected Operating Pressure (MEOP)*: 0 through 10,000 PSI ; 0 through 689 BAR - Proof Pressure: 3 times MEOP up to 1,000 PSI ; 2 times MEOP over 1,000 PSI - Minimum Burst Pressure: 4.5 times MEOP - Maximum External Case Pressure: 15,000 PSI / 1,034 Bar - Compensated Temperature Range (CTR) Temperature range in which the transducer will operate within the total error band: -40° C to +121° C (-40° F to +250° F) - Operating Temperature Temperature range in which the transducer will operate without degradation of performance once it returns to the CTR: -54° C to +93° C (-65° F to +200° F) - Strain Gage Type: Resistive Bonded Foil - Insulation Resistance: 10 Gohm @ 50 VDC - Electrical Receptacle: 0-5 VDC: SEA CON® XSJ-5BCR ; 4-20 mA: SEA CON® VSG-2BCL - Mating Connector: 0-5 VDC: SEA CON® XSJ-5CCP ; 4-20 mA: SEA CON® VMG-2FS - Cable: 0-5 VDC: 2' length ; 4-20 mA: 2' length plus G-FLS-X locking sleeve - Excitation Voltage: 0-5 VDC: 20-36 VDC (28 VDC nominal) ; 4-20 mA: 8-36 VDC (24 VDC nominal) - Diaphragm Material: 17-4 PH stainless - Weight: 2000 Series: Typical 1.3 Kg ; 2002 Series: Typical 980 g - Case Material: 17-4 PH stainless - Pressure Port: 1/2 NPT female ... |
| Accessories: |
N/A
|
| Optional Accessories: |
Platinum RTD outputs: 100 Ohm, 1000 Ohm & 2000 Ohm.
|
| Standard Features: |
Voltage (VDC) or Current (mA) output signal Does not require regulated power supply 15,000 PSI maximum external case pressure Compatible with seawater Uses SEA CON® underwater Dry-Mate style receptacles 2000 Series output short circuit protected
|
