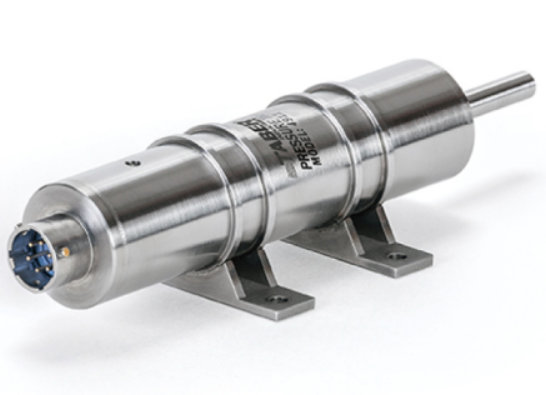

SPACE QUALIFIED / RADIATION HARDENED PRESSURE TRANSDUCER - TABER 5411 / 5911 Series
Lượt xem : 18
| Descriptions: |
With over 50 years of space production heritage, Taber is the industry leader when it comes to pressure measurements in space. Taber’s Model 5411 / 5911 amplified pressure transducer series is qualified for space programs and is Taber’s Space Transducer of choice when extreme, high reliability is required. NASA Level 1 electric, electronic and electro-mechanical (EEE) components with additional testing are incorporated in a rugged, hermetically sealed, stainless steel construction. The bonded foil strain gage diaphragm design provides outstanding accuracy, stable signal fidelity over time and is compatible with a wide variety of gas and liquid media including typical propellants used in spaceflight. Specifications: - Output Signal: 0-5 VDC - Full Scale Output (FSO): 5 VDC - Static Error Band: ± 0.25% FSO using Best Fit Straight Line (BFSL) and Root Sum Squared (RSS) Method - Total Error Band: ± 0.5% FSO over entire Compensated Temperature Range (CTR) - Maximum Expected Operating Pressure (MEOP): 0-4 BAR through 0-345 BAR 0-60 PSI through 0-5,000 PSI - Proof Pressure: 1.5 times MEOP, Minimum - Minimum Burst Pressure: 2.5 times MEOP - Compensated Temperature Range (CTR) - Temperature range in which the transducer will operate within the total error band. -34° C to +77° C (-30° F to +170° F) - Operating Temperature: Temperature range in which the transducer will operate without degradation of performance once it returns to the CTR. -40° C to +93° C (-40° F to +200° F) - Strain Gage Type: Resistive Bonded Foil - Insulation Resistance / Isolation Resistance: > 100 Mohm at 50 VDC - Electrical Connection: D38999/27YA35PN per MIL-DTL-38999 - Mating Connector (not included): D38999/26KA35SN or equivalent - Excitation Voltage: 23-34 VDC (28 VDC nominal) - Operating Current: < 25 mA - EEE Selection: Class S, NASA Level 1 (Class S, JANS, etc.) with additional testing - Series 5411 | Series 5911 - Wetted Ports Materials: 304L VAR, 15-5 PH - Weight: Typical < 400 g | Typical < 900 g - Case Material: 304L and 17-4 PH - Pressure Port: 1/4" Diameter Tube Stub with Ti transition weld ... |
| Accessories: |
N/A
|
| Optional Accessories: |
Platinum RTD outputs: 100 Ohm, 1000 Ohm & 2000 Ohm.
|
| Standard Features: |
Voltage (VDC) output signal Does not require regulated power supply Wide pressure range Output short circuit protected Improved accuracy options Includes bulkhead filtering for EMI/EMC immunity against MIL-STD-461 Radiation hardened EEE parts with enhanced radiation shielding Optional isolated or non-isolated electronics Includes Class S EEE components with additional testing PSI, Bar or MPa in absolute or gauge pressure options |
