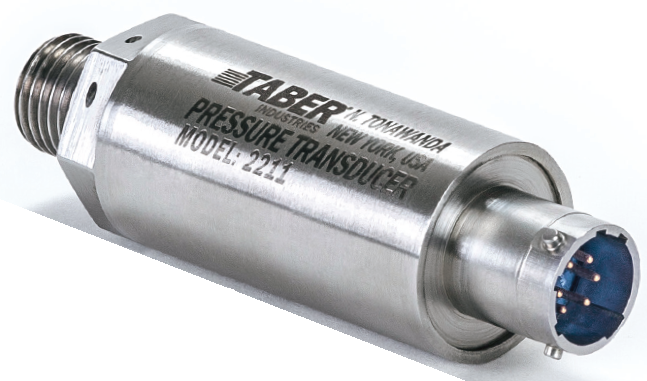

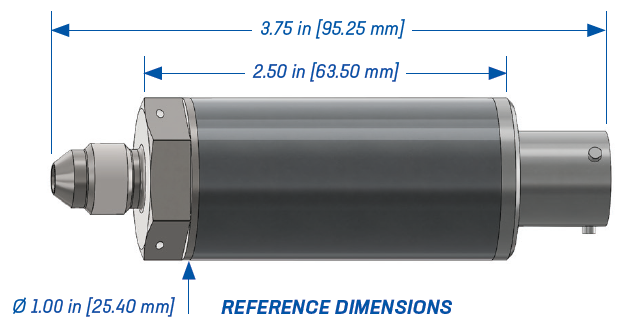

Taber’s Model 2211 non-amplified, highly configurable pressure transducer series incorporates a rugged, hermetically sealed, stainless steel construction. Designed with passive components, the 2211 series delivers exceptional reliability in extreme environments. The bonded foil strain gage diaphragm design provides outstanding accuracy, stable signal fidelity over time and is compatible with a wide variety of gas and liquid media. Taber’s 2211 series is available for broad pressure ranges with pressure reference options

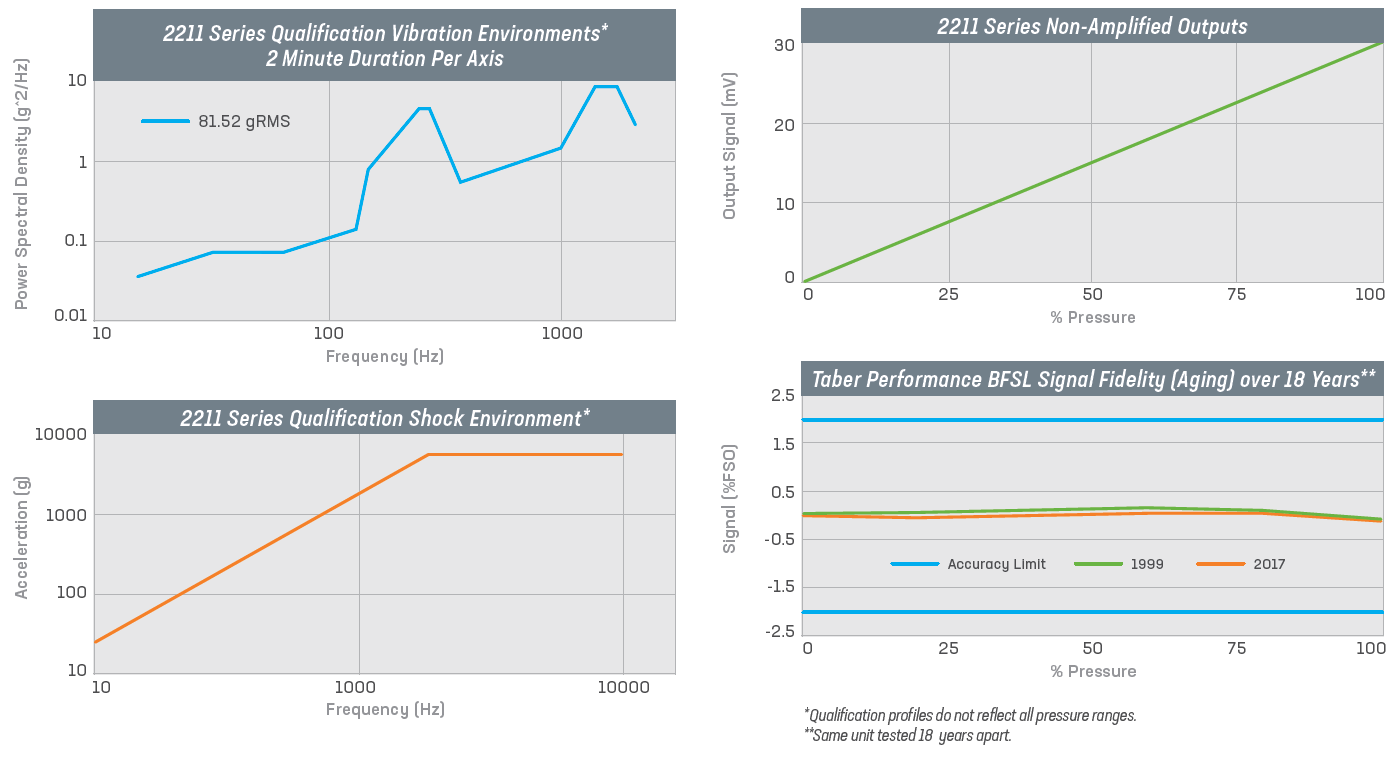

Specifications:

• Output Signal: 3 mV/V.
• Full Scale Output (FSO): 30 mV typical with 10 VDC input.
• Static Error Band: ± 0.25% FSO using Best Fit Straight Line (BFSL) and Root Sum Squared (RSS) Method.
• Total Error Band: ± 1% FSO over entire Compensated Temperature Range (CTR).
• Maximum Expected Operating Pressure (MEOP): 0-1.72 BAR through 0-2,068 BAR ; 0-25 PSI through 0-30,000 PSI
• Proof Pressure: 1.5 times MEOP, Minimum.
• Minimum Burst Pressure: 3 times MEOP up to 5,000 PSI ; 2 times MEOP over 5,000 PSI.
• Compensated Temperature Range (CTR) Temperature range in which the transducer will operate within the total error band: -34° C to +77° C (-30° F to +170° F)
• Operating Temperature Temperature range in which the transducer will operate without degradation of performance once it returns to the CTR.: -73° C to +149° C (-100° F to +300° F)
• Strain Gage Type: Resistive Bonded Foil
• Insulation Resistance: > 100 MOhm at 50 VDC
• Electrical Connection: MS3443H10B6P per MIL-DTL-26482 Series 2
• Mating Connector (not included): MS3476-10-6S or equivalent
• Excitation Voltage: 5-15 VDC (10 VDC nominal) regulated power supply required
• Operating Current: < 30 mA at 10 VDC
• Wetted Parts Materials: 304L, 304L VAR, 316L, 347, 15-5 PH, 17-4 PH, A286
• Weight: Typical < 100 g
• Case Material: 304, 17-4 PH
• Pressure Port: AS4395-04 (MS33656-4) .4375-20 UNJF-3A flared male thread

...

Platinum RTD outputs: 100 Ohm, 1000 Ohm & 2000 Ohm.
Internal or External shunt value at various percentages FSO at +21° C (+70° F).
EMI/EMC filtering (will add length to the transducer).
Pigtail option available.
Reference prints available for download upon request.
