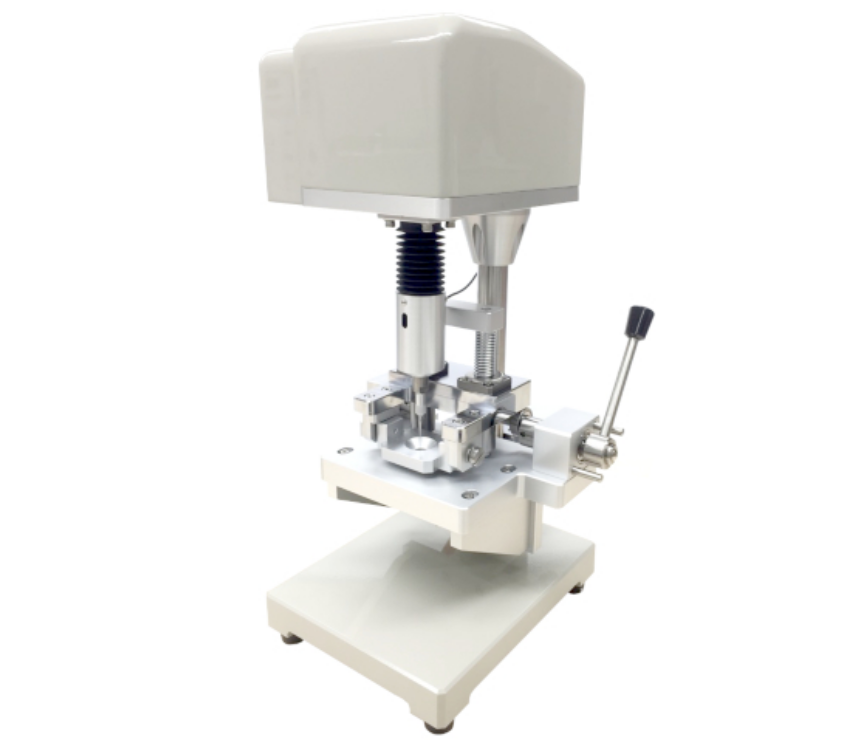

NDG5 Puncture Strength Tester

Lượt xem : 62

Function:

This testing machine measures the piercing strength required for a needle to penetrate a sample. It is to measure rupture strength by applying a vertical force, used for testing physical properties of battery separators.

The NDG5 can be used to evaluate the strength of film inside lithium-ion batteries (separators) and to measure the strength required to pierce packaging materials such as food packaging films.

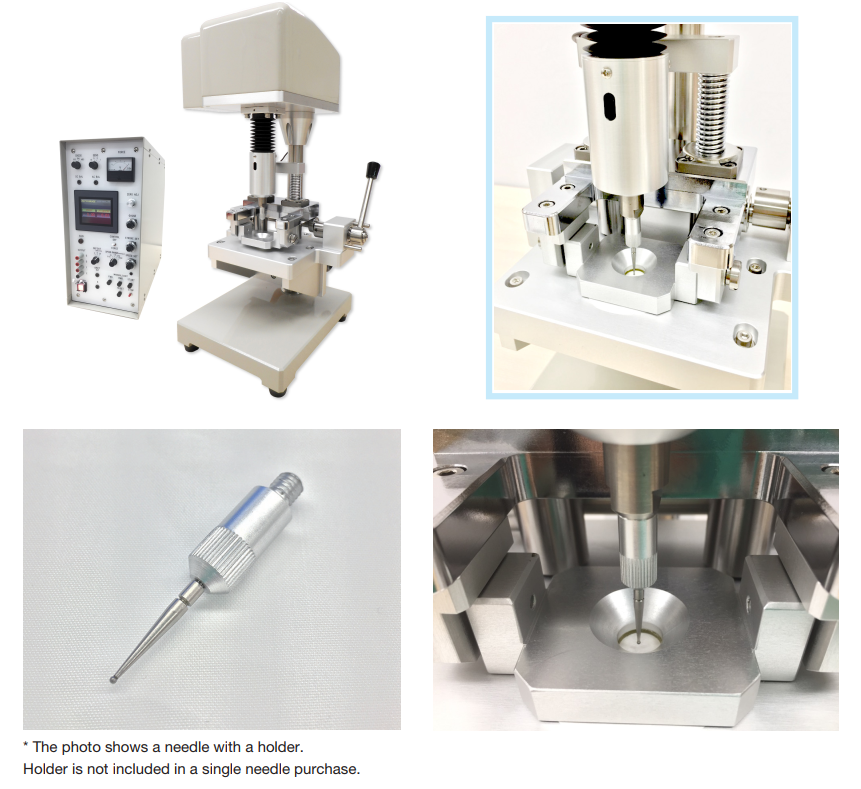

Specialized needle: Designed with separator measurement in mind (size: ø1, 0.5R tip shape)

Measurement Examples:

- Strength evaluation for separators inside lithium-ion batteries.

- Piercing strength evaluation for food packaging films.

Brands:

KATO TECH (JAPAN)

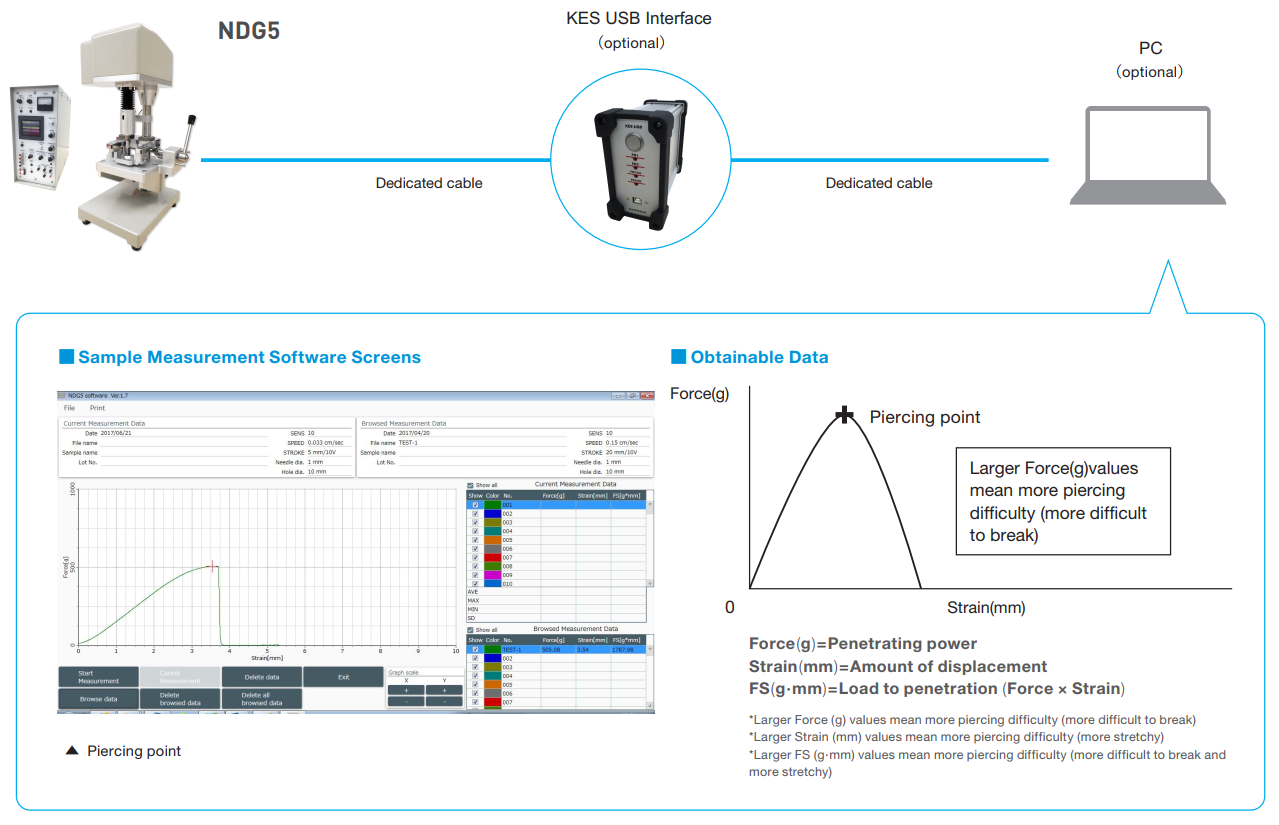

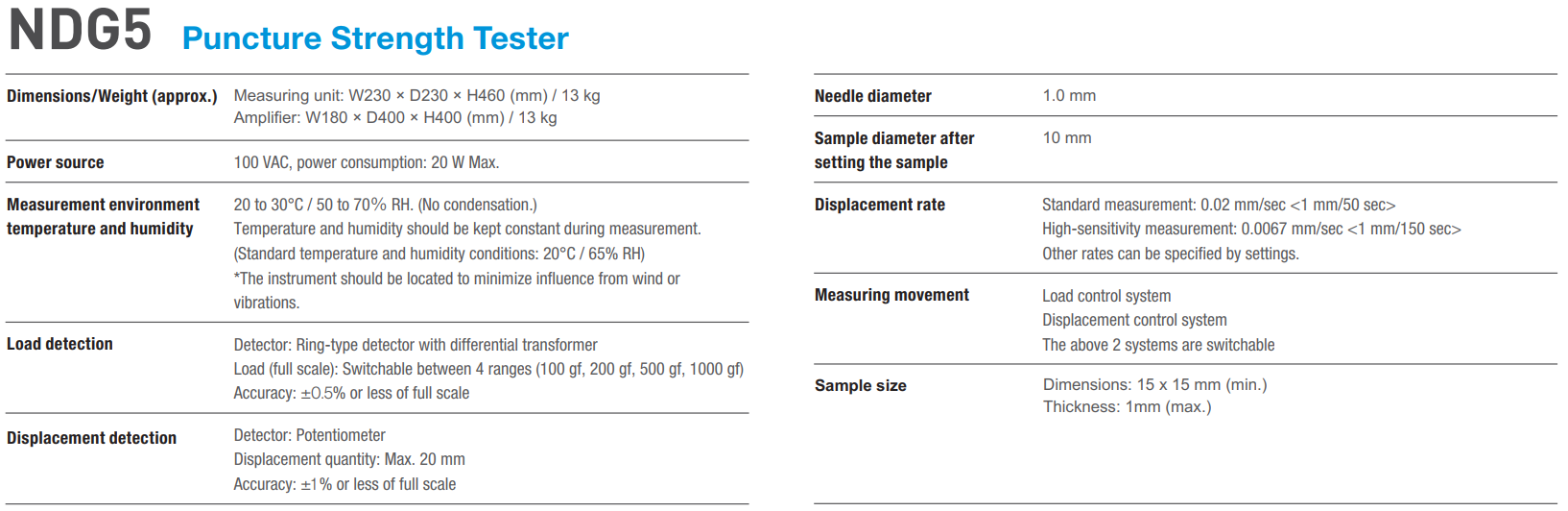

Specifications:

Dimensions/Weight (approx.)

- Measuring unit: W230 × D230 × H460 (mm) / 13 kg
- Amplifier: W180 × D400 × H400 (mm) / 13 kg

Power source

- 100 VAC, power consumption: 20 W Max.

Measurement environment temperature and humidity

- 20 to 30°C / 50 to 70% RH. (No condensation.)
- Temperature and humidity should be kept constant during measurement. (Standard temperature and humidity conditions: 20°C / 65% RH)
*The instrument should be located to minimize influence from wind or vibrations.

Load detection:

- Detector: Ring-type detector with differential transformer
- Load (full scale): Switchable between 4 ranges (100 gf, 200 gf, 500 gf, 1000 gf)
- Accuracy: ±0.5% or less of full scale

Displacement detection:

- Detector: Potentiometer
- Displacement quantity: Max. 20 mm
- Accuracy: ±1% or less of full scale

Needle diameter: 1.0 mm
Sample diameter after setting the sample: 10 mm
Displacement rate

- Standard measurement: 0.02 mm/sec < 1 mm/50 sec>
- High-sensitivity measurement: 0.0067 mm/sec < 1 mm/150 sec>
- Other rates can be specified by settings.
