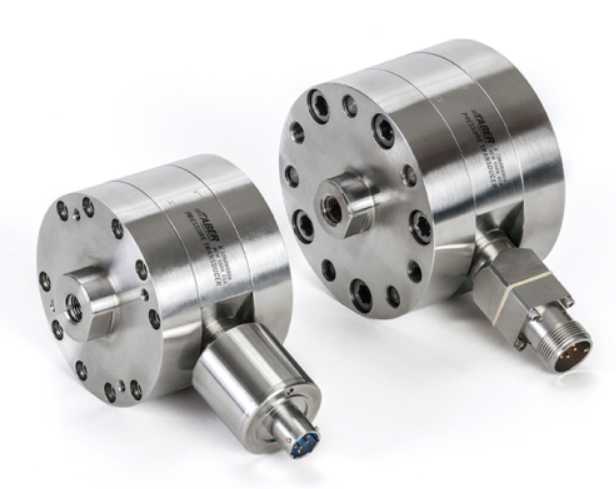

DIFFERENTIAL PRESSURE TRANSDUCER (rated line pressure 5000 PSI (345 Bar)) - TABER 2217 / 2417 Series
Lượt xem : 19
| Descriptions: |
Taber’s 2217 / 2417 series differential pressure transducer incorporates a reliable, wet-wet, stainless steel construction to measure static differential pressures. Engineered for high line pressures up to 5000 PSI (345 Bar), the 2217 / 2417 can handle high differential pressure overloads. Compatible with a wide variety of gas and liquid media, the bonded foil strain gage diaphragm design provides stable signal fidelity and aerospace grade components provide high accuracy. Removable pressure caps allow for easy inspection and cleaning of the pressure media cavity. Specifications: - Output Signal: 3 mV/V | 0-5 VDC | 4-20 mA - Full Scale Output (FSO): 30 mV with 10 V input | 5 VDC | 16 mA - Static Error Band: ±0.4% FSO using Best Fit Straight Line (BFSL) and Root Sum Squared (RSS) Method - Total Error Band: ±2.1% FSO over entire Compensated Temperature Range (CTR) - Differential Calibrated Pressure Range*: 5 to 1000 PSI | 0.9 to 1000 PSI - Differential Overload Pressure: ±1,200 PSI / ±83 Bar - Rated Line Pressure: 5,000 PSI / 345 Bar - Minimum Burst Pressure: > 5,165 PSI / 356 Bar - Compensated Temperature Range (CTR) Temperature range in which the transducer will operate within the total error band. -23° C to +71° C (-10° F to +160° F) - Operating Temperature Temperature range in which the transducer will operate without degradation of performance once it returns to the CTR. -40° C to +85° C (-40° F to +185° F) - Strain Gage Type: Resistive Bonded Foil - Insulation Resistance: > 10 Gohm @ 50 VDC - Electrical Receptacle: MS3443H10B6P per MIL-DTL-26482 Series 2 - Mating Connector (not included): MS3476-10-6S or equivalent - Excitation Voltage: 10 VDC | 20-36 VDC | 8-36 VDC - Diaphragm Material: 347 SS - Weight: Typical 4.3 Kg - Case Material: 316L - Pressure Port: AS5202-04 (MS33649-4) 4375-20 UNJF-3B female thread ... |
| Accessories: |
N/A
|
| Optional Accessories: |
Alternative pressure fittings.
|
| Standard Features: |
Millivolt (mV/V), Voltage (VDC) or Current (mA) output signal Output short circuit protected All stainless steel construction – case and wetted cavity True differential pressure measurement Removable pressure caps Oil filled, no cryogenic temperatures Unidirectional and bidirectional operation Mechanical stops prevent damage from high differential pressure overloads |
