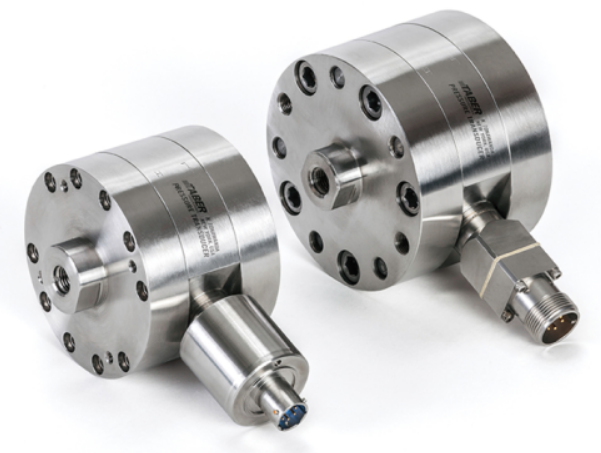

DIFFERENTIAL PRESSURE TRANSDUCER (rated line pressure 1200 PSI (83 Bar)) _ TABER 2212 / 2412 Series
Lượt xem : 25
| Descriptions: |
Taber’s 2212 / 2412 series differential pressure transducer incorporates a reliable, wet-wet, stainless steel construction to measure static differential pressures. Engineered for line pressures up to 1200 PSI (83 Bar), the 2212 / 2412 are designed to handle high differential pressure overloads. The bonded foil strain gage diaphragm design provides stable signal fidelity and is compatible with a wide variety of gas and liquid media. Aerospace grade components provide high accuracy, and removable pressure caps allow for easy inspection and cleaning of the pressure media cavity. Specifications: - Output Signal: 2212 Series: 3 mv/V ; 2412 Series: 0-5 VDC, 4-20 mA - Full Scale Output (FSO): 2212 Series: 30 mV with 10 V input 2412 Series: 5 VDC, 16 mA - Static Error Band: ±0.4% FSO using Best Fit Straight Line (BFSL) and Root Sum Squared (RSS) Method - Total Error Band: ±2.1% FSO over entire Compensated Temperature Range (CTR) - Differential Calibrated Pressure Range* 2212 Series: 5 to 1000 PSI 2412 Series: 0.9 to 1000 PSI - Differential Overload Pressure: ±1,200 PSI / ±83 Bar - Rated Line Pressure: 1,200 PSI / 83 Bar - Minimum Burst Pressure: > 3,000 PSI / 207 Bar - Compensated Temperature Range (CTR) Temperature range in which the transducer will operate within the total error band: -23° C to +71° C (-10° F to +160° F) - Operating Temperature Temperature range in which the transducer will operate without degradation of performance once it returns to the CTR: -40° C to +85° C (-40° F to +185° F) - Strain Gage Type: Resistive Bonded Foil - Insulation Resistance: 10 Gohm @ 50 VDC - Electrical Receptacle: D38999/27YA35PN per MIL-DTL-38999 - Mating Connector (not included): D38999/26KA35SN or equivalent - Excitation Voltage: 3 mV/V: 10 VDC ; 0-5 VDC: 20-36 VDC ; 4-20 mA: 8-36 VDC - Diaphragm Material: 347 SS - Weight: Typical 2.95 Kg - Case Material: 316L - Pressure Port: AS5202-04 (MS33649-4) ; 4375-20 UNJF-3B female thread ... |
| Accessories: |
N/A
|
| Optional Accessories: |
Alternative pressure fittings.
|
| Standard Features: |
Millivolt (mV/V), Voltage (VDC) or Current (mA) output signal Output short circuit protected All stainless steel construction - case and wetted cavity True differential pressure measurement Removable pressure caps Oil filled, no cryogenic temperatures Unidirectional and bidirectional operation Mechanical stops prevent damage from high differential pressure overloads
|
